Ridges

The apex of a roof can be given a sharp or soft outline by using different ridge profiles.  The most commonly used is the half round ridge and a similar soft appearance is obtained with a hog back ridge.  An angle ridge provides a sharp apex and this in turn can be broken up by using capped angle ridges or a special ornamental profile.

All Ridges at 300mm unless stated as 450mm.

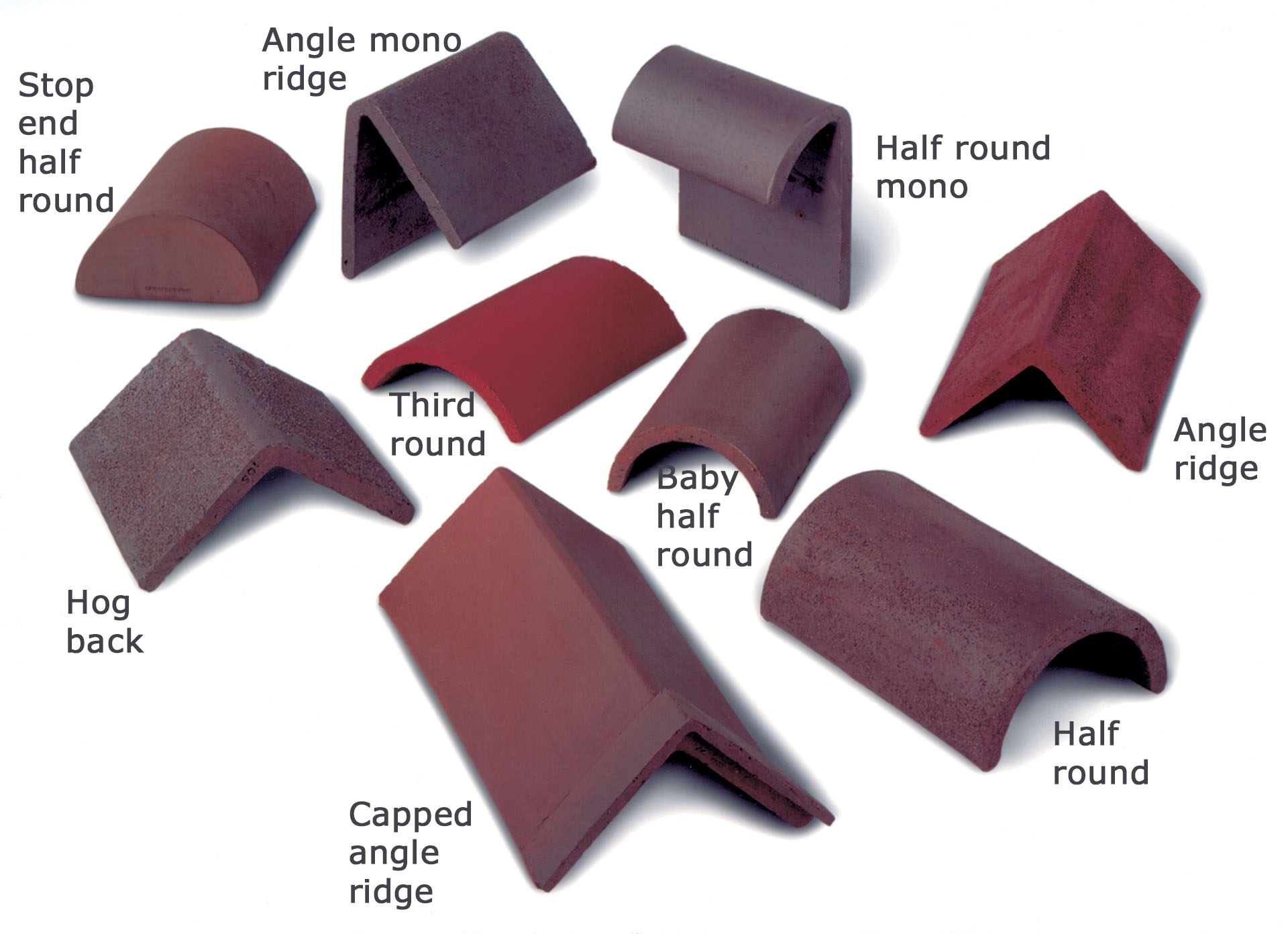

1.  Stop End Half Round Ridge

2.  Angle Mono Ridge

3.  Half Round Mono Ridge

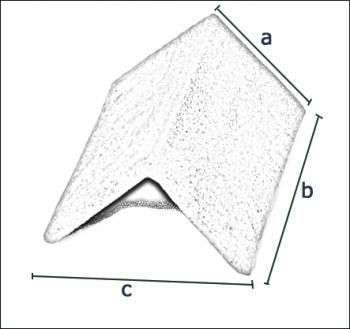

4.  450mm Angle Ridge

5.  Baby Half Round Ridge

A baby half-round ridge (165mm diameter) can be supplied for use on porches or canopies.

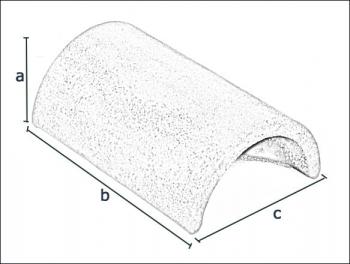

6.  Half Round Ridge

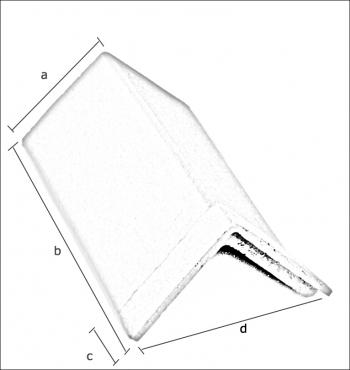

7.  450mm Capped Angle Ridge

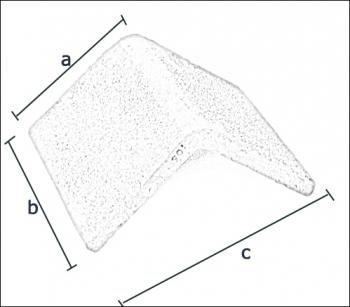

8.  Hogback Ridge

9.  'Third' Round Ridge

Dreadnought Ridges are hand made.  If you have special designs or would like an existing feature to be matched, contact our sales office who will be delighted to discuss your requirements.
