Handmade ornamental ridges

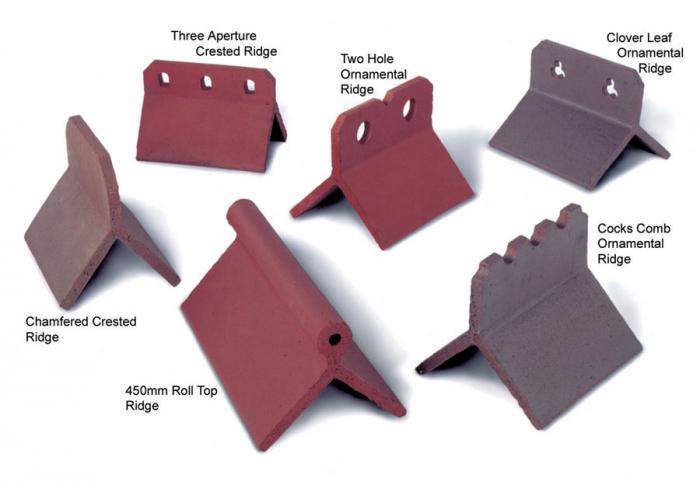

Dreadnought's wide range of ornamental ridges are all handmade and add something special to the roof.  The ridges are at 300mm unless stated as 450mm.

The New British Standard BS 5534 requires all ridge tiles to be mechanically fixed.  The tileline ridgeroll system will allow for mechanical fixing of ornamental ridge tiles whilst providing ventilation in the roof  (click here for more info). A more traditional mortared look can also be achieved by bedding the ridge tiles in the normal way but using a clip and screw between the ridge tiles to create a mechanical fixing before the mortar "goes off", but this method does not provide any ventilation (though this can be provided elsewhere on the roof with tile vents).

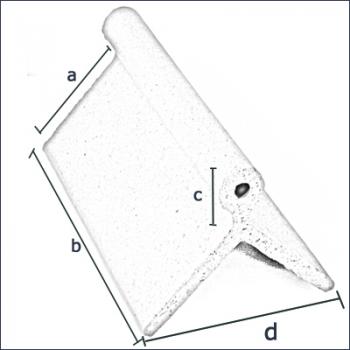

300 mm/450mm Roll Top Ridge



Angle	a	b	c	d
75o	155	300/450	80	220
90o	170	300/450	85	250
105o	165	300/450	75	260
115o	165	300/450	75	280

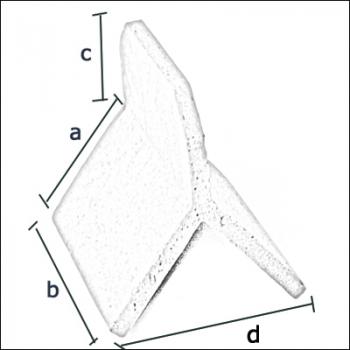

Chamfered Crested Ridge

Angle	a	b	c	d
75o	170	300	120	225
90o	165	300	120	250
105o	165	300	120	265

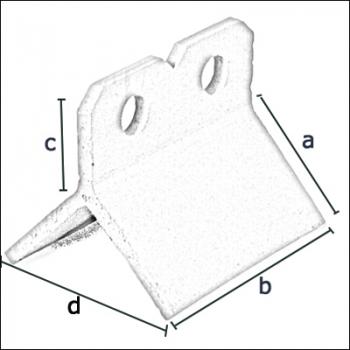

Two Hole Ornamental Ridge

Angle	a	b	c	d
75o	170	300	120	225
90o	165	300	120	250
105o	165	300	120	265

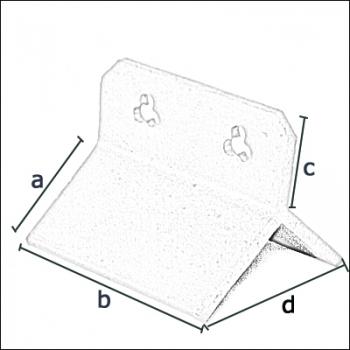

Clover Leaf Ornamental Ridge

Angle	a	b	c	d
75o	170	300	120	225
90o	165	300	120	250
105o	165	300	120	265

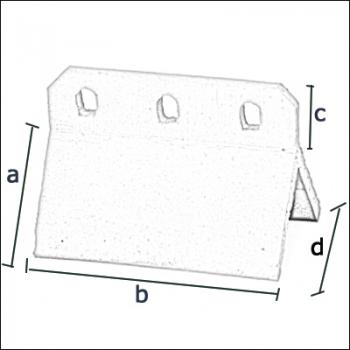

Three Aperture Crested Ridge

Angle	a	b	c	d
75o	170	300	75	225
90o	165	300	75	250
105o	165	300	75	265

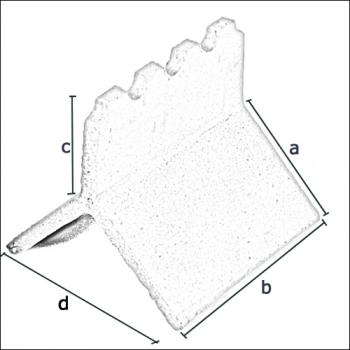

Cocks Comb Ornamental Ridge

Angle	a	b	c	d
75o	170	300	120	225
90o	165	300	120	250
105o	165	300	120	265















Please note: Clay is a natural material and all our products are subject to dimensional tolerances.  These dimensions are approximate and typical of the product but should not be taken as a guarantee of characteristics.

In addition to the ornamental ridges shown above, we also manufacture bespoke ornamental ridge tiles and we can match existing designs for restoration projects.

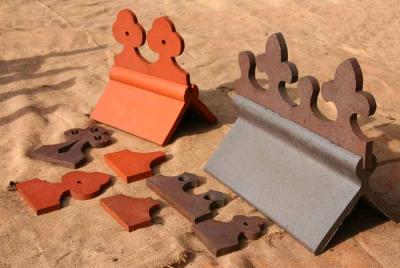

These slotted roll top ornamental ridges pictured have a groove in their length to take specially made inserts.  These inserts are fixed into the groove in the roll using an epoxy resin.  Any shape of insert can be manufactured and here you can see some examples of various shapes we have made.

Below a skilled craftsman is working on a particularly complex ornamental ridge for Athlone House, see full case study here
