Classic Purple Brown

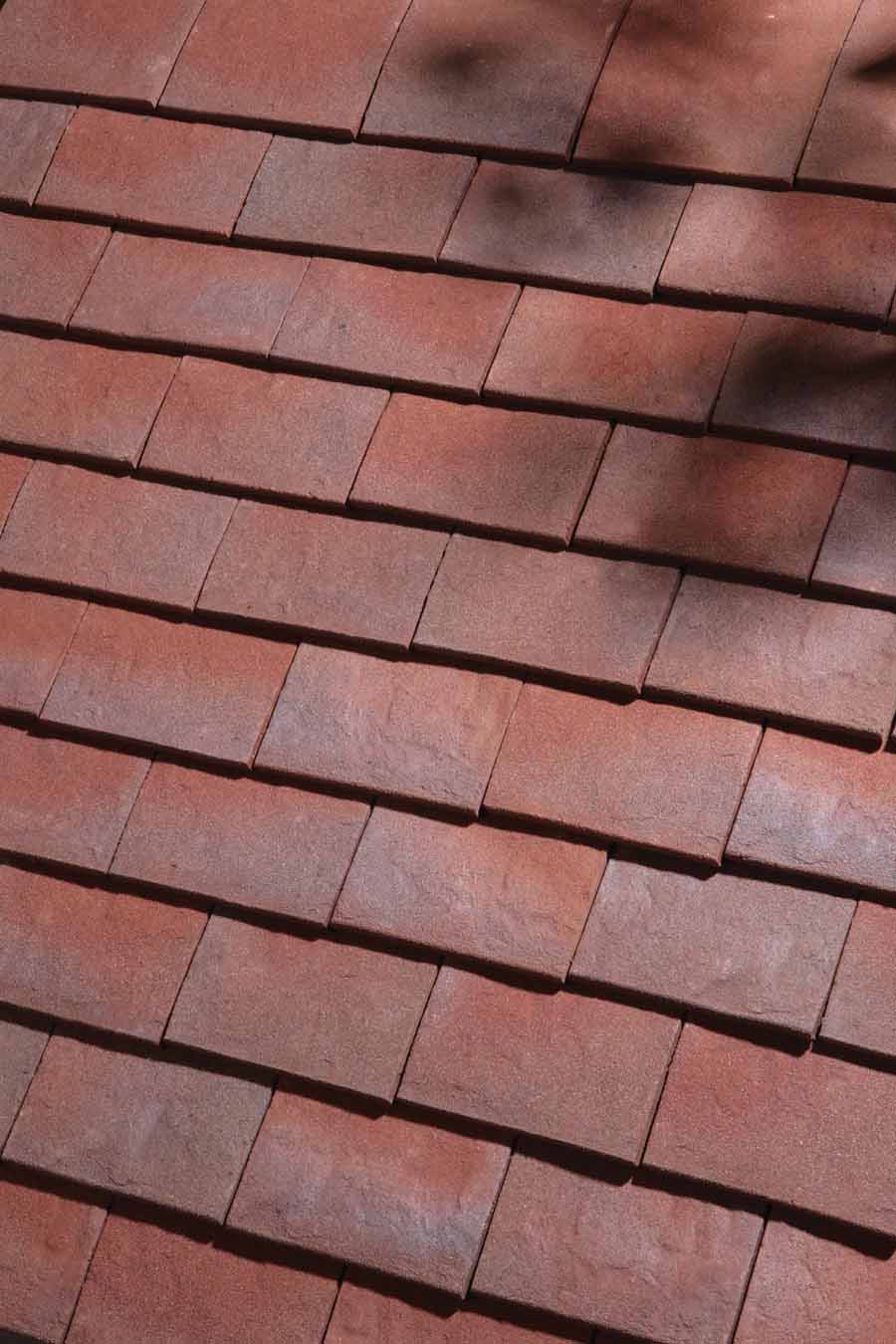

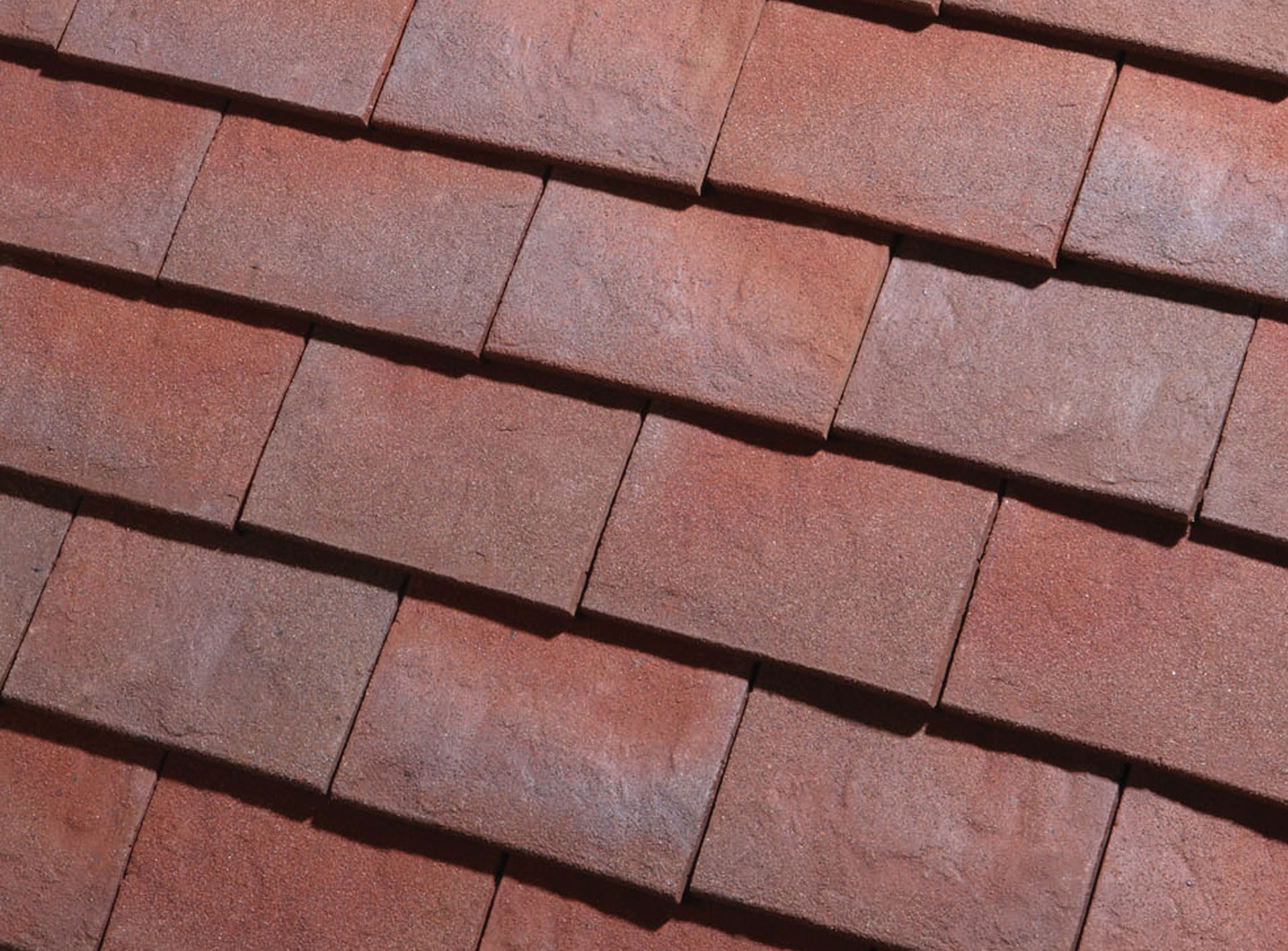

Dreadnought's Classic Purple Brown handmade tiles display a variation of colour with shades of reds, browns and purples. Through the application of a carefully controlled reduction atmosphere for a limited period this organic colour variation is achieved. No two clay tiles will have the same stamp giving a beautiful blend of colour on the roof. The Purple Brown colour also mixes well with the Bronze colour to form a charming blend.
Dreadnought Tiles conform to BS EN 1304:2013 and should be fixed in accordance with BS5534 "Slating and Tiling" part 1 & 2 and BS8000 Part 6.
Freeze Thaw Standards require plain clay tiles for use in the U.K. to withstand at least 150 freeze / thaw cycles under method E of European Standard EN 539-2:2013. At Dreadnought Tiles we regard this as too low for our climate and we therefore test our tiles to withstand in excess of 400 cycles.
|Size||265 x 165 mm||215 x 165 mm||265 x 248 mm|
|Weight||1.5 kg||1.2 kg||2.3 kg|
|Material||Etruria Marl||Etruria Marl||Etruria Marl|
|Minimum Lap||65 mm||32 mm|
|Maximum Gauge||100 mm||115 mm|
|Approx Weight at
|90 kg/m2||79.5 kg/m2|
|Nails||38 x 2.65 mm alloy||38 x 2.65 mm alloy|
|Battens||38 x 25 mm||38 x 25 mm|
|Minimum Pitch||35 degree|
|Tiles @ 100mm Gauge||60 per m2|
|115mm Gauge||53 per m2|
|Gable (Tile and Half)||5/lineal metre of verge|
|Hips and Valleys||10/lineal metre of main rafter|
|Ridges||Supplied in 300 mm and 450 mm lengths|
|BS 5534 2014||Code of Practice for Slating and Tiling|
|BS 8000-6.2013||Workmanship on Building Sites|
|BS EN 1991-1-4:2005+A1:2010||UK National Annex to Eurocode 1 -Actions on Structures - Part 1-4: General actions - wind actions|
Place of Manufacture: Brierley Hill, UK
Environmental Management: ISO 14001 Download Certificate
Quality Management: ISO 9001 Download Certificate
Life Cycle: BRE 'A+' rating
Freeze Thaw Testing to in excess of 400 cycles Download Freeze Thaw Test Certificate >>
Energy: Fired in gas kilns to 1130 degrees
Raw materials: Etruria Marl Clay from our local quarry in Brierley Hill, sand
Lifespan: > 60 years. Second hand tiles that have been on roofs in excess of 100 years often sell for more than new tiles on the 2nd hand market
Recyclability: Can be crushed and used as aggregate and/or as an inert bulk fill
Packaging: We keep packaging to a minimum using wooden pallets. We do not shrink wrap or use plastic straps.
