Classic Deep Red

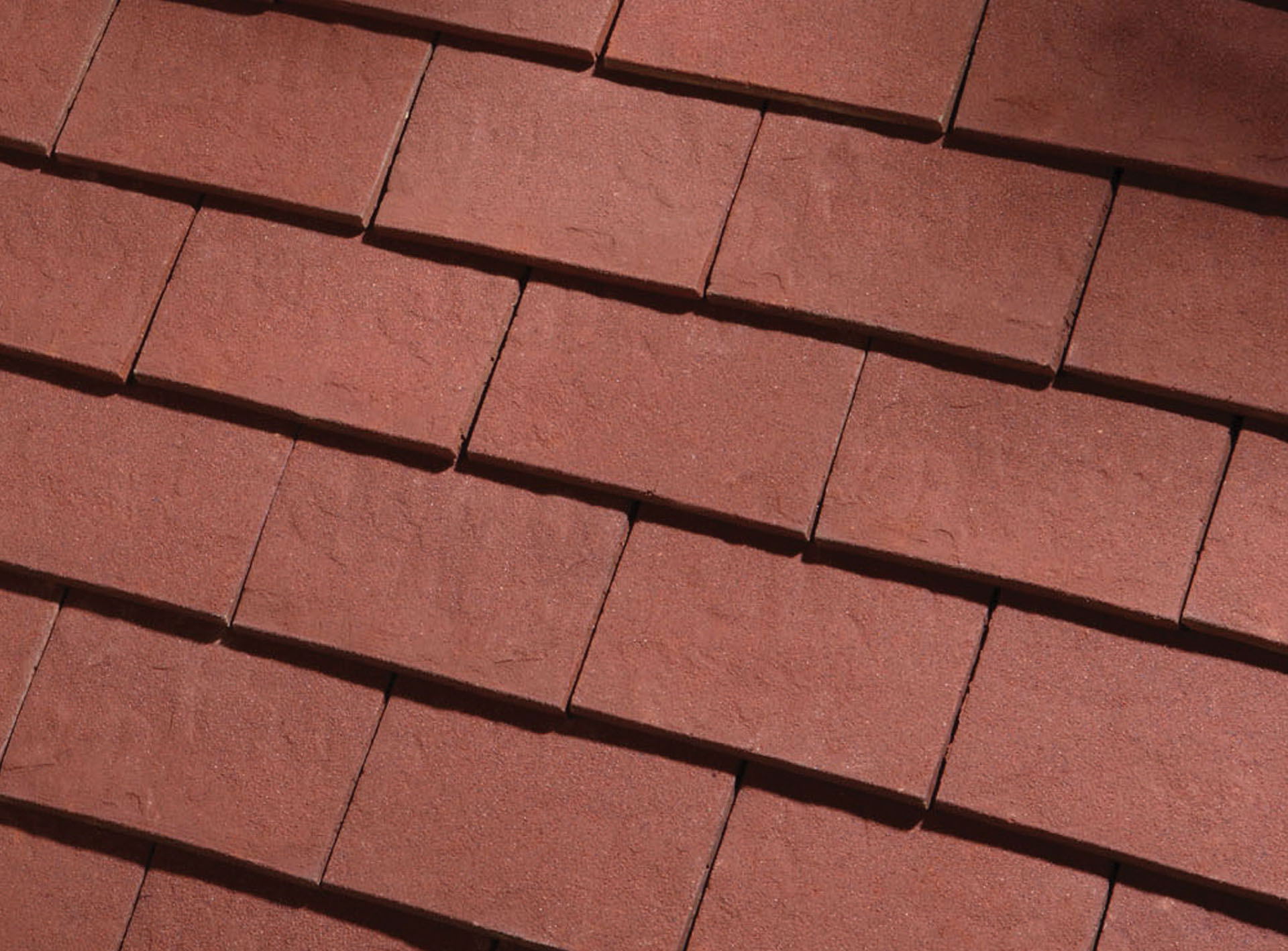

Classic Deep Red Handmade clay tiles

Dreadnought's Classic Deep red handmade tile is an iron rich natural clay colour.   The deep red clay roof tile has been widely used on Victorian buildings.  This colour dates back to 1805 when Dreadnought first began making clay roof tiles

Request sample

Technical Info

Dreadnought Tiles conform to BS EN 1304:2013 and should be fixed in accordance with BS5534 "Slating and Tiling" part 1 & 2 and BS8000 Part 6.
Frozen-Icon2 webFreeze Thaw Standards require plain clay tiles for use in the U.K. to withstand at least 150 freeze / thaw cycles under method E of European Standard EN 539-2:2013.   At Dreadnought Tiles we regard this as too low for our climate and we therefore test our tiles to withstand in excess of 400 cycles.

Download Freeze Thaw Testing Report

Download this page as pdf

Download Specification Word Doc

  Tiles Eaves Gable
Size 265 x 165 mm 215 x 165 mm 265 x 248 mm
Weight 1.5 kg 1.2 kg 2.3 kg
Pattern Handmade
Material Etruria Marl Etruria Marl Etruria Marl



  Pitched Roofs Vertical
Minimum Lap 65 mm 32 mm
Maximum Gauge 100 mm 115 mm
Approx Weight at
Maximum Gauge
90 kg/m2 79.5 kg/m2
Nails 38 x 2.65 mm alloy 38 x 2.65 mm alloy
Battens 38 x 25 mm 38 x 25 mm
Minimum Pitch 35 degree

Quantity Guide

Tiles @ 100mm Gauge 60 per m2
115mm Gauge 53 per m2
Eaves/Tops 6/lineal metre
Gable (Tile and Half) 5/lineal metre of verge
Hips and Valleys 10/lineal metre of main rafter
Ridges Supplied in 300 mm and 450 mm lengths

Relevant Fixing Standards

BS 5534 2014 Code of Practice for Slating and Tiling
BS 8000-6.2013 Workmanship on Building Sites
BS EN 1991-1-4:2005+A1:2010 UK National Annex to Eurocode 1 -Actions on Structures - Part 1-4: General actions - wind actions

Environmental Info

Place of Manufacture: Brierley Hill, UK
Environmental Management:       ISO 14001        Download Certificate
Quality Management:                    ISO   9001         Download Certificate
Life Cycle: BRE 'A+' rating
Freeze Thaw Testing to in excess of 400 cycles  Download Freeze Thaw Test Certificate >>
Energy: Fired in gas kilns to 1130 degrees
Raw materials: Etruria Marl Clay from our local quarry in Brierley Hill, sand
Lifespan: > 60 years. Second hand tiles that have been on roofs in excess of 100 years often sell for more than new tiles on the 2nd hand market
Recyclability: Can be crushed and used as aggregate and/or as an inert bulk fill
Packaging: We keep packaging to a minimum using wooden pallets. We do not shrink wrap or use plastic straps.

Find out more about Dreadnought Tiles approach to sustainability

Download our Quality and Environmental Policy
